Cu Triton PC ™
Copper Oxide Infused
Cylindrical PC Emitter
The most durable Pressure Compensating emitter, designed for permanent crops with long laterals and multi-season subsurface applications
Copper Oxide Compound
Our Cu Emitter Line™, provides a solid defense against root intrusion in SDI installations. The copper oxide compound which our emitters contain, act as a barrier to roots and invasive underground rhizomes of the plants. Moreover, the Cu compound that we use inhibits the growth of algae, bacteria, and fungi development, reducing the risk of clogging in the emitters and dripline. The Cu Emitter Line™ products use the same injection moulding process as the non Cu emitters, since the PE compound contains the active copper oxide ingredients.
Pressure Compensating (PC)

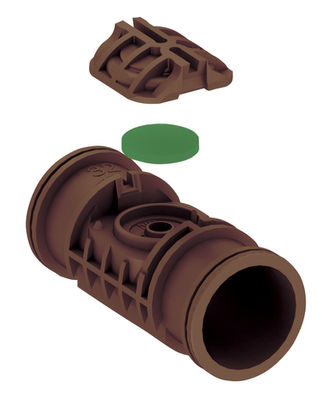

PC emitters incorporate a silicon membrane which enables the delivery of precise and equal amounts of water over a broad pressure range. Cu Cyclone PC™ emitters are designed for any kind of SDI application.
Non-Drain (ND) and Anti-Siphon (AS)
The Anti-Siphon (AS) system both is a specially designed mechanism that prevents suction of dirt and impurities into the emitter. The AS feature enables Triton PC to be installed underground (SDI), perfectly maintaining its irrigation characteristics and its multi-year durability.
With the Non-Drain system of Triton PC, the dripline remains full of water during irrigation intervals, ensuring immediate and uniform irrigation along the dripline. Non-Drain emitters eliminate drainage and refill effect and improve efficiency in pulse irrigation. In order to achieve the Non-Drain function, the emitter closes when the pressure is below 0,1 bar.
Emitter Characteristics
-
Cu compound infused emitter that prevents root intrusion and inhibits the growth of algae, bacteria, and fungi development.
-
Available in two flow rates 2,0 and 4,0 l/h (0,53 and 1,06 g/h)
-
Suitable for driplines with 16mm diameter
-
Designed for insertion systems of wall thicknesses ranging from 25 mil up to 47 mil (0,65 mm - 1,2 mm)
-
Manufactured from the finest raw materials that provide durability and long-lasting performance
-
Wide and accurate water passages along the labyrinth
-
Special labyrinth design that ensures high turbulent flow of the water
-
Continuous self cleaning mechanism ensures non-clogging uninterrupted operation
-
High UV resistant
-
Resistant to all nutrients used in agricultural
-
Injected molded emitters with excellent Coefficient of Variation (CV), less than 5%
-
Excellent for effluent water reuse
-
Wide pressure compensation range
SDI Applications
Suitable for deep buried multi seasonal SDI installations,
for more than 15 years depending on dripline thickness.
